| Место происхождения: | Китай |
|---|---|
| Фирменное наименование: | Wakestone |
| Сертификация: | CE,ISO |
| Номер модели: | ДЖСП20 |
| Количество мин заказа: | 1 комплект |
| Цена: | Negotiation ( EXW , FOB or CIF price ) |
| Упаковывая детали: | Случаи или паллеты экспорта деревянные |
| Время доставки: | 5-7 трудодней |
| Условия оплаты: | L / C, T / T, Western Union |
| Поставка способности: | 1000 комплектов в год |
| Цвет: | Зеленый или по запросу | Частота: | 2800 rpm |
|---|---|---|---|
| Вес: | 2600 KG | после обслуживания: | 12 месяцев |
| Состояние: | 100% новое | Пакет: | Случаи экспорта деревянные или как запрос |
| Высокий свет: | Молоток кучи экскаватора KATO HD820 Vibratory,Молоток кучи более малошумного экскаватора Vibratory,Легкий молоток кучи экскаватора деятельности |
||
Hydraulic Pile Hammer Driving Machine Pile Driver For KATO Excavator HD820
Advantage
1. Easy operation
2. Flexible control
3. lower Noise
4. Easy maintenance
5. Precision Design
6. Reliable Performance
7. Quick Speed
Features
1. Special steel material with high ductility and wear resistance.
2. Driven by motor, utilizing a kind of exciting force produced by reciprocating motion of centrifugal force up and down.
3. Original imported motor, more durable, high swinging speed and frequency.
4. All bearings are originally imported with longer life service.
5. Flexible single chuck, double chuck styles can be designed.

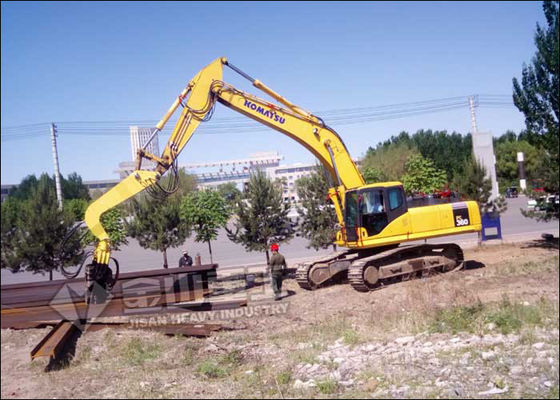

6. Hydraulic vibratory pile hammer is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc. Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and etc.
Parameter
| ItemModel | Unit | JSP20 | JSP40 | |
| Eccentric Moment | Nm | 40 | 85 | |
| Frequency | rpm | 2800 | 2800 | |
| Centrifugal Force | KN | 300 | 570 | |
| Amplitude | mm | 6.8 | 14 | |
| Working Pressure | bar | 280 | 300 | |
| Oil Flow | L/min | 155 | 255 | |
| Max Turning | degree | 270 | 270 | |
| Weight | Main Body | kg | 2080 | 2940 |
| Extension Boom | kg | 740 | 1070 | |
| Total weight | kg | 2900 | 4100 | |
| Applicable Excavator | Ton | 20-30 | 35-50 | |
